Factory Price Hydraulic Four Column Jigsaw Puzzle Cutting Machine
Four-column hydraulic cutting press is widely used in handbags, luggage, shoes, leather goods, silk flowers, foam, plastic, plush toys, sports goods, automotive supplies, EVA and other industries cutting processing.
1. The precision four-column cutting machine is widely applicable to the cutting work of all kinds of non-metallic materials for various industries.
2. Double oil cylinders and precise four-column double crank connecting rod balance structure ensure the same cutting depth at each cutting position.
3. The unique setting structure, together with the setting of cutting tool and cutting depth, makes the stroke adjustment simple and accurate.
4. Automatic slow cutting when cutting press plate contact with cutting knife, so that there is no size error between the topmost and bottom layers of cutting materials.
5. All sliding parts adopt the central oil automatic lubrication system, which ensures the service life and accuracy of the machine.
Parameter
| 1 | Model # | YY-P30 | YY-P40 | YY-P50 | YY-P60 |
| 2 | Cutting force | 30 Ton | 40 Ton | 50 Ton | 60 Ton |
| 3 | Working table size | 1600*500mm | 1600*600mm | 1600*700mm | 1600*800mm |
| 4 | Stroke adjustment range | 0-130mm | 0-130mm | 0-130mm | 0-130mm |
| 5 | Hydraulic oil capacity | 110L | 170L | 270L | 270L |
| 6 | Motor power | 2.2KW | 3KW | 4KW | 5.5KW |
| 7 | Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
| 8 | Machine size(mm) | 2200*900*1400 | 2200*1000*1450 | 2300*1250*1430 | 2300*1250*1430 |
| 9 | Package size(mm) | 2260*980*1450 | 2260*1080*1500 | 2350*1300*1500 | 2350*1300*1500 |
| 10 | Net weight | 1200kgs | 1500kgs | 2150kgs | 2800kgs |
| 11 | Gross weight | 1550kgs | 1700kgs | 2500kgs | 3000kgs |

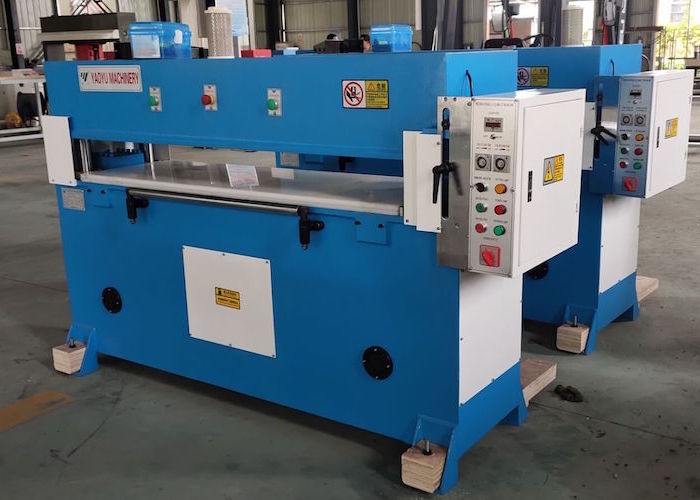

More machine pictures
FQA:
1) What's warranty of machine?
12 months Warranty
Life-long maintenance service for machine
2) What's your after-sales service?
Engineer available to serve machines overseas;
Email and calling service in working hour; 24 hours door to door in domestic.
3) Can you test cutting our material by your machine for free?
Yes, please contact us and send your material.
4) How to decide how much ton pressure is needed?
Normally one meter of knife line needs about 5 tons cutting pressure.
please send your drawing or product photo, we can help you confirm.
5) Can you make dies & PP boards?
Yes, just send your drawing or requirements.
6) Are you a factory or trading company?
We are a factory and manufacturer
7) Don't know which machine is suitable for your material?
Please provide below information to us !
| Material: | |
| Max. material width: | |
| Max. material thickness: | |
| Max cutting length: | |
